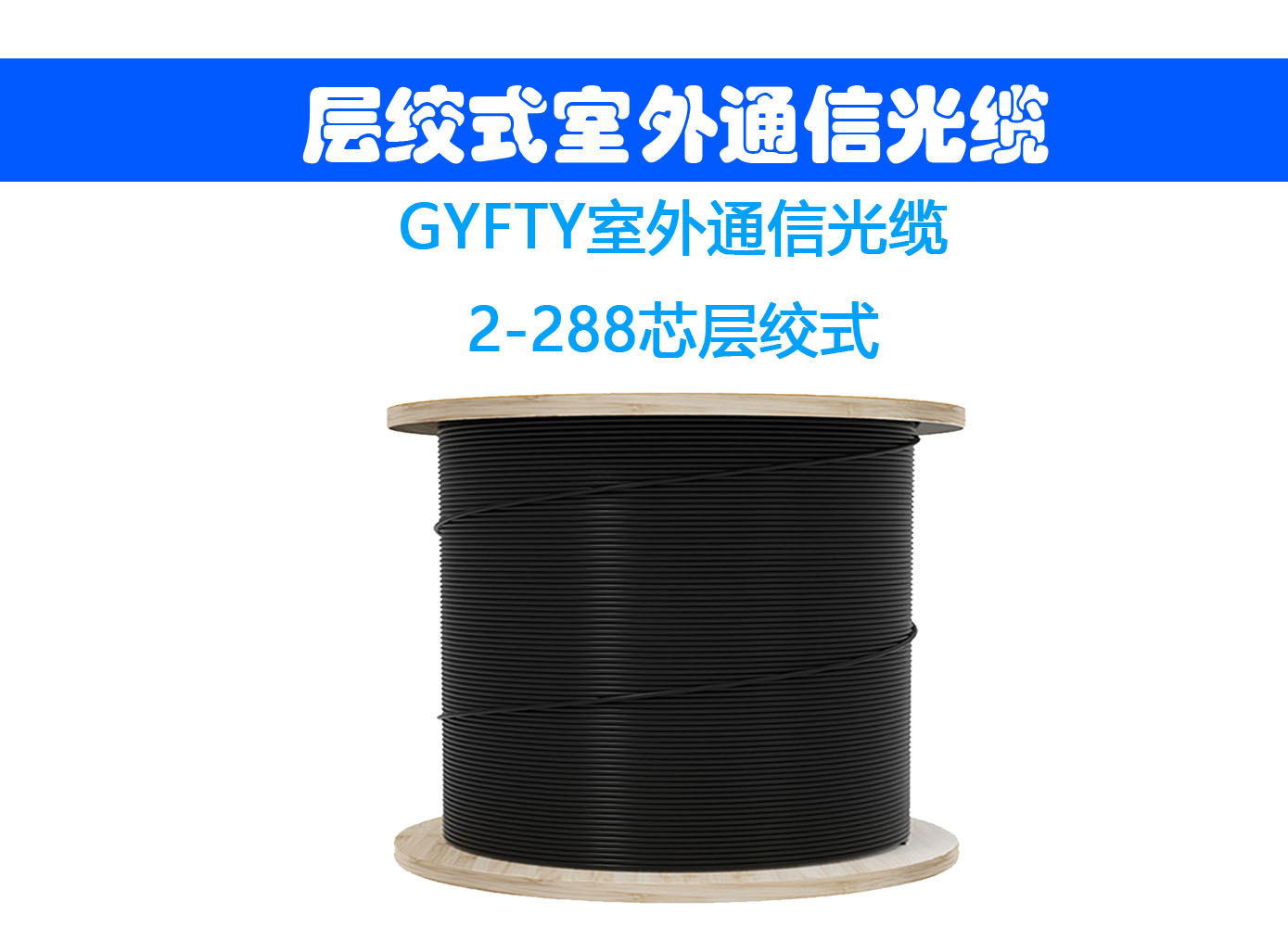

gyfty光纜代號表示的是什么意思，gyfty是什么光纜，gyfty是什么型號光纜



gyfty光纜簡介

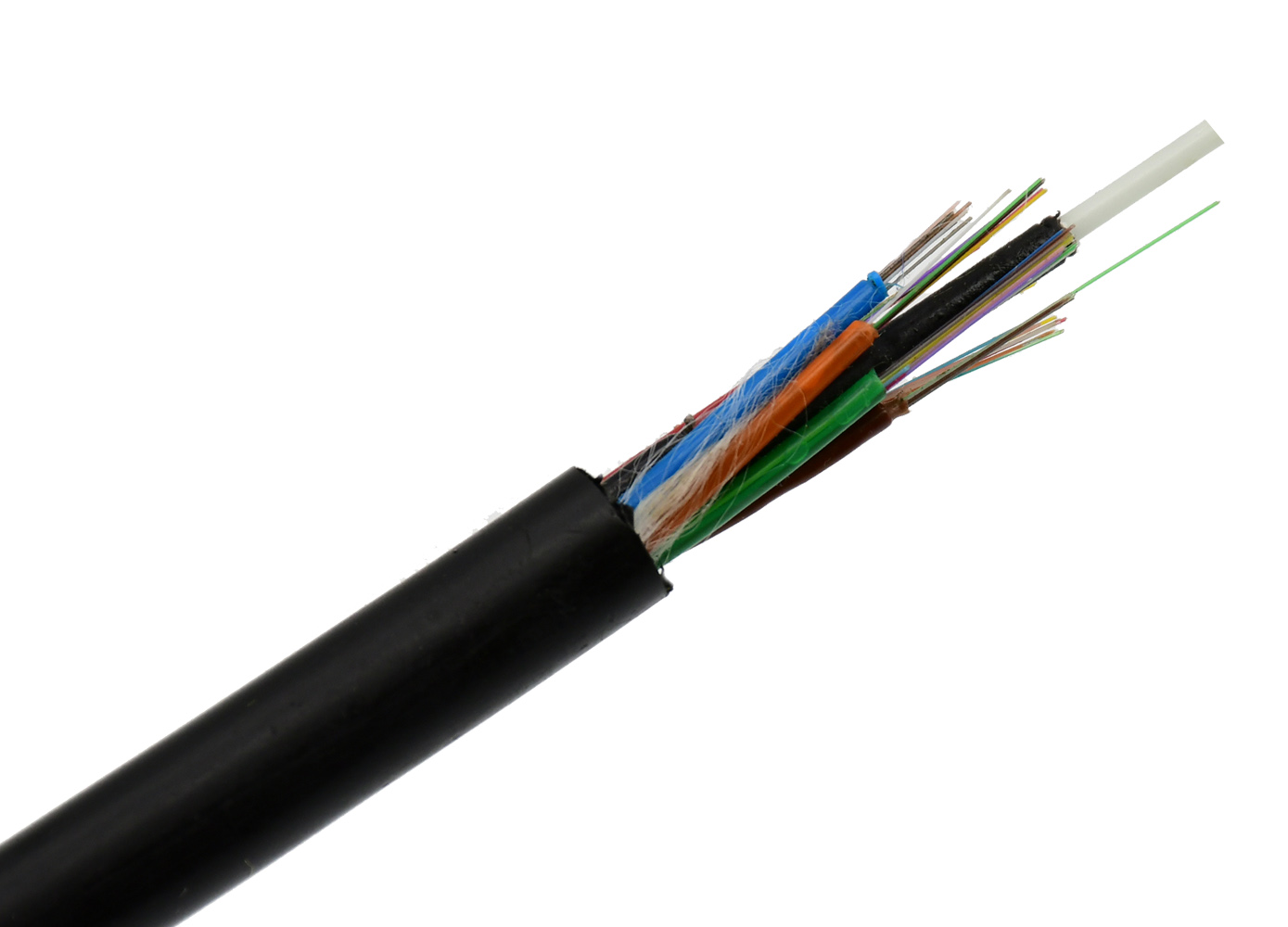

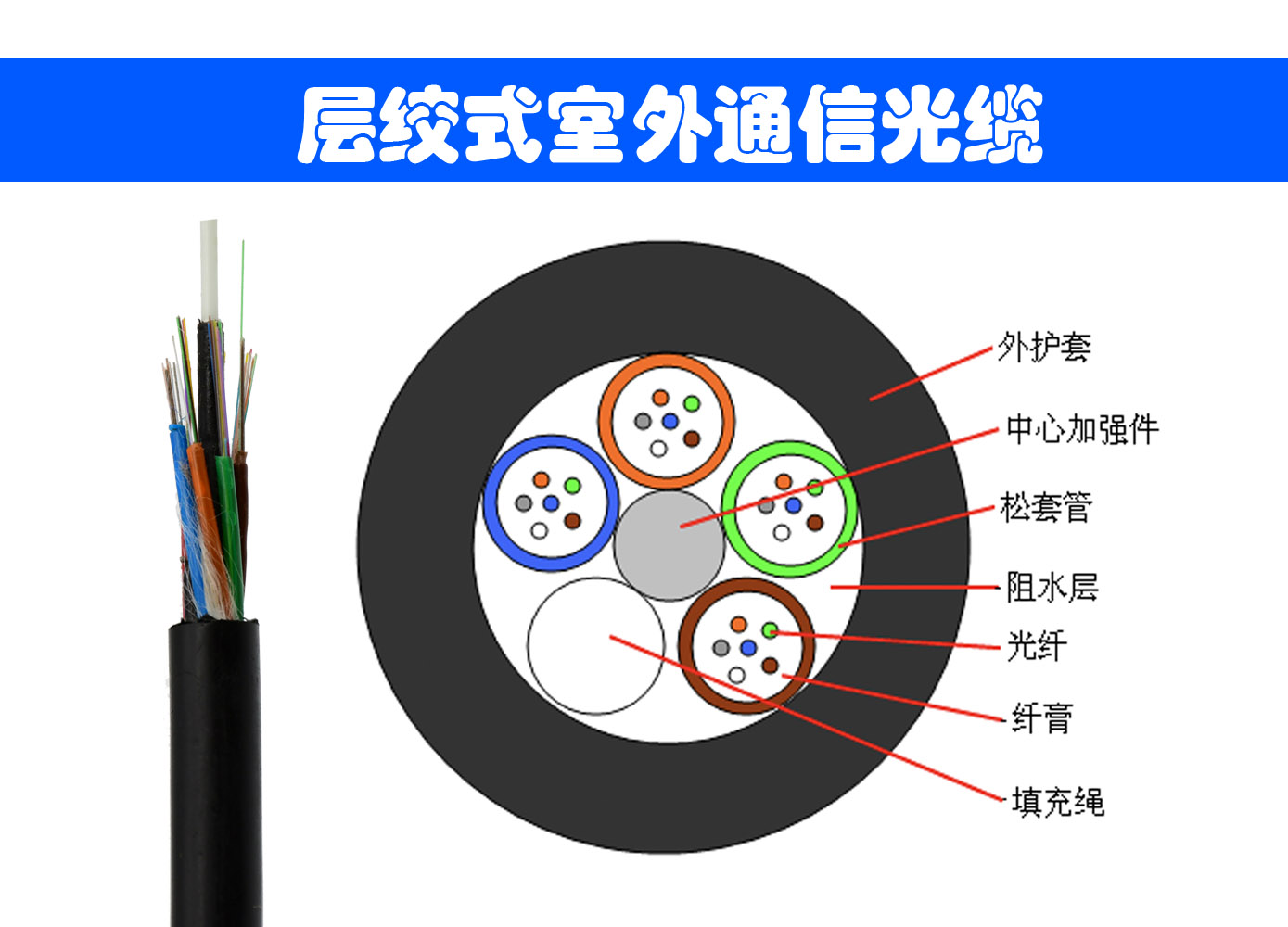

GYFTY光纜的結構是將250μm光纖套入高模量材料制成的松套管中，松套管內填充防水化合物。纜芯的中心是一根非金屬加強芯(FRP)，對于某些芯數的光纜來說，:非金屬加強芯外還需擠上一層聚乙烯(PE)。松套管(和填充繩 )圍繞中心加強芯絞合成緊湊和圓形的纜芯，纜芯內的縫隙充以阻水填充物。擠制聚乙烯護套成纜。
The fibers, 200/250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.



非金屬光纜最大的優點

Product Features

具有很好的機械性能和溫度特性
Good mechanical and temperature performance
松套管材料本身具有良好的耐水解性能和較高的強度
High strength loose tube that is hydrolysis resistant
管內充以特種油膏，對光纖進行了關鍵性保護
Special tube filling compound ensure a critical protection of fiber
良好的抗壓性和柔軟性
Good crush ability and soft
采用下列措施來確保光纜的防水性能：
To assure the water-proof function by:
單根非金屬中心加強芯
single non-metallic central strength member
松套管內填充特種防水化合物
Special tube filling compound ensure a critical protection of fiber
完全纜芯填充
Fully filled in the cable



非金屬光纜執行標準是什么

Product Standard

GYFTY cable complies with Standard YD/T 901-2009 as well as IEC 60794-1.
GYFTY 光纜符合YD/T 901-2001和IEC 60794-1標準



GYFTY管道光纜型號

GYFTY管道光纜技術參數
光纜芯數	光纜結構	光纜松套管內 最大光纖芯數	光纜重量 （kg/km）
2-30	1+5	6	45
32-60	1+5	12	55
74-96	1+6	12	60
62-72	1+8	12	75
98-120	1+10	12	95
122-144	1+12	12	120
146-216	1+6+12	12	120
218-300	1+9+15	12	150
允許拉力（N）短期		≥1500N
允許拉力（N）長期		≥600N
允許壓扁力-短期		≥1000（N/100mm）
允許壓扁力-長期		≥300（N/100mm）

1、典型值可根據實際情況做相應調整；
The typical values can be adjusted accordingly according to the actual situation;
2、可根據客戶要求進行相應產品的設計；
Can design corresponding products according to customer requirements;
