8字形光纜
產品描述 Description

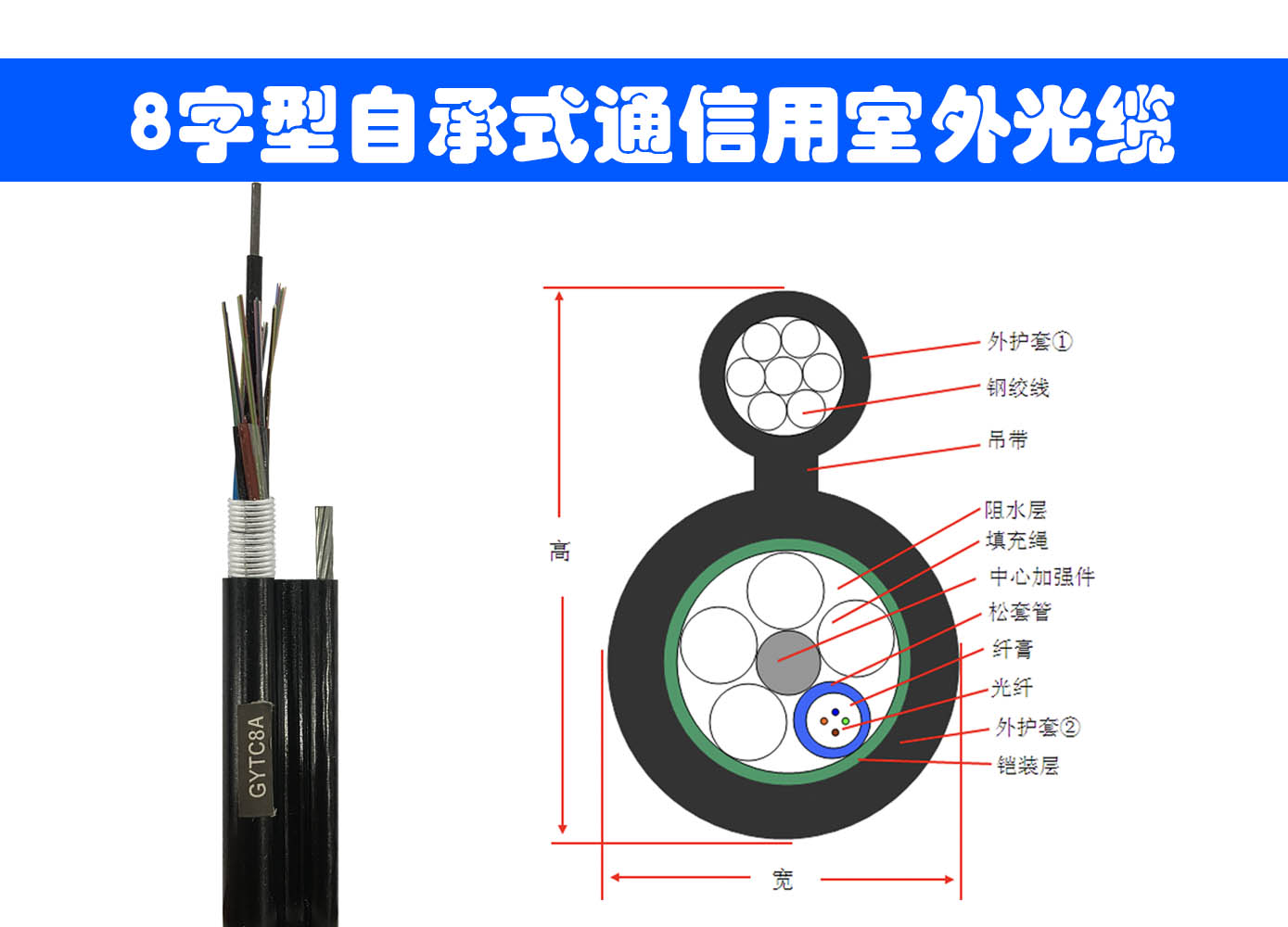

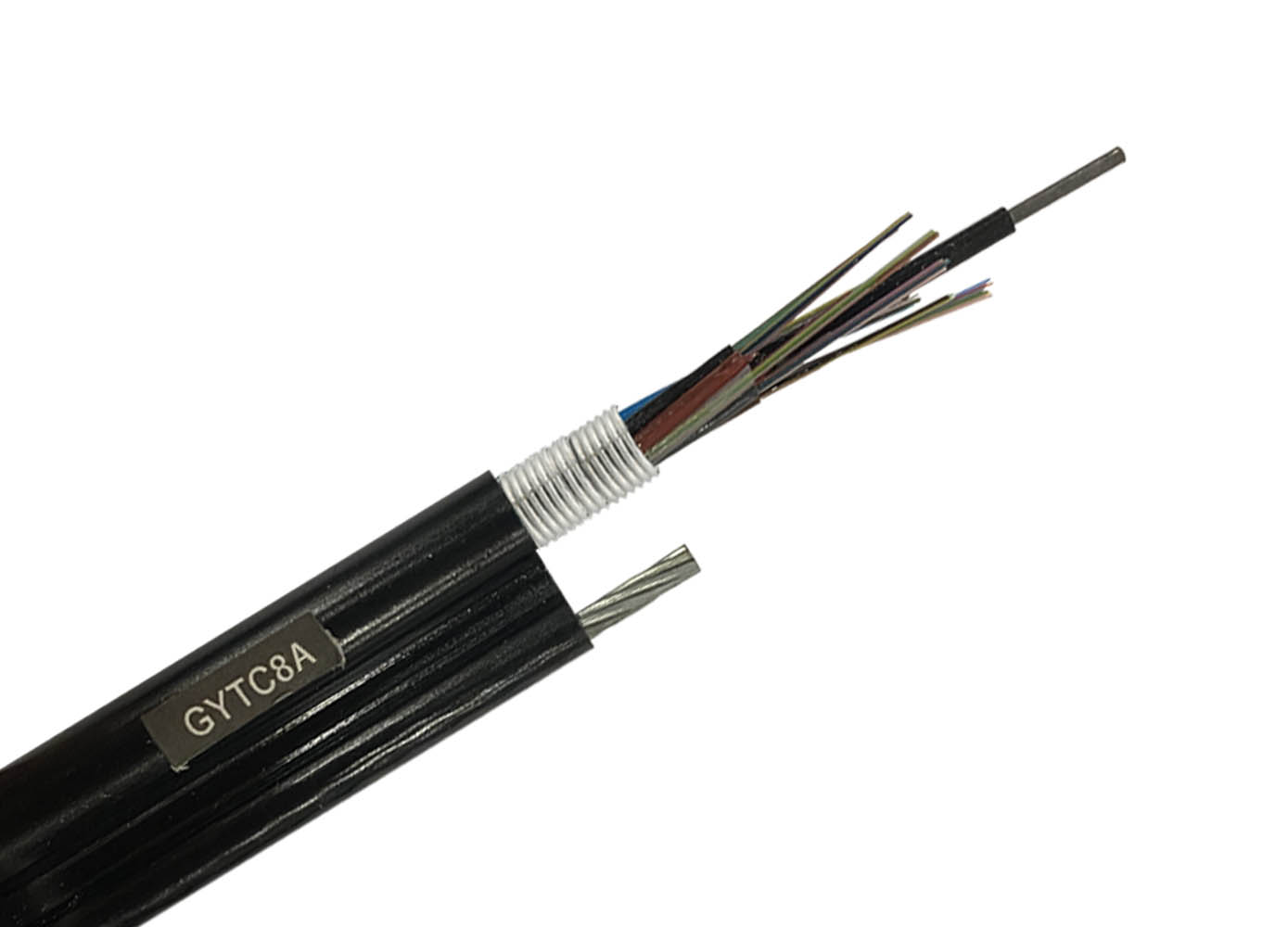

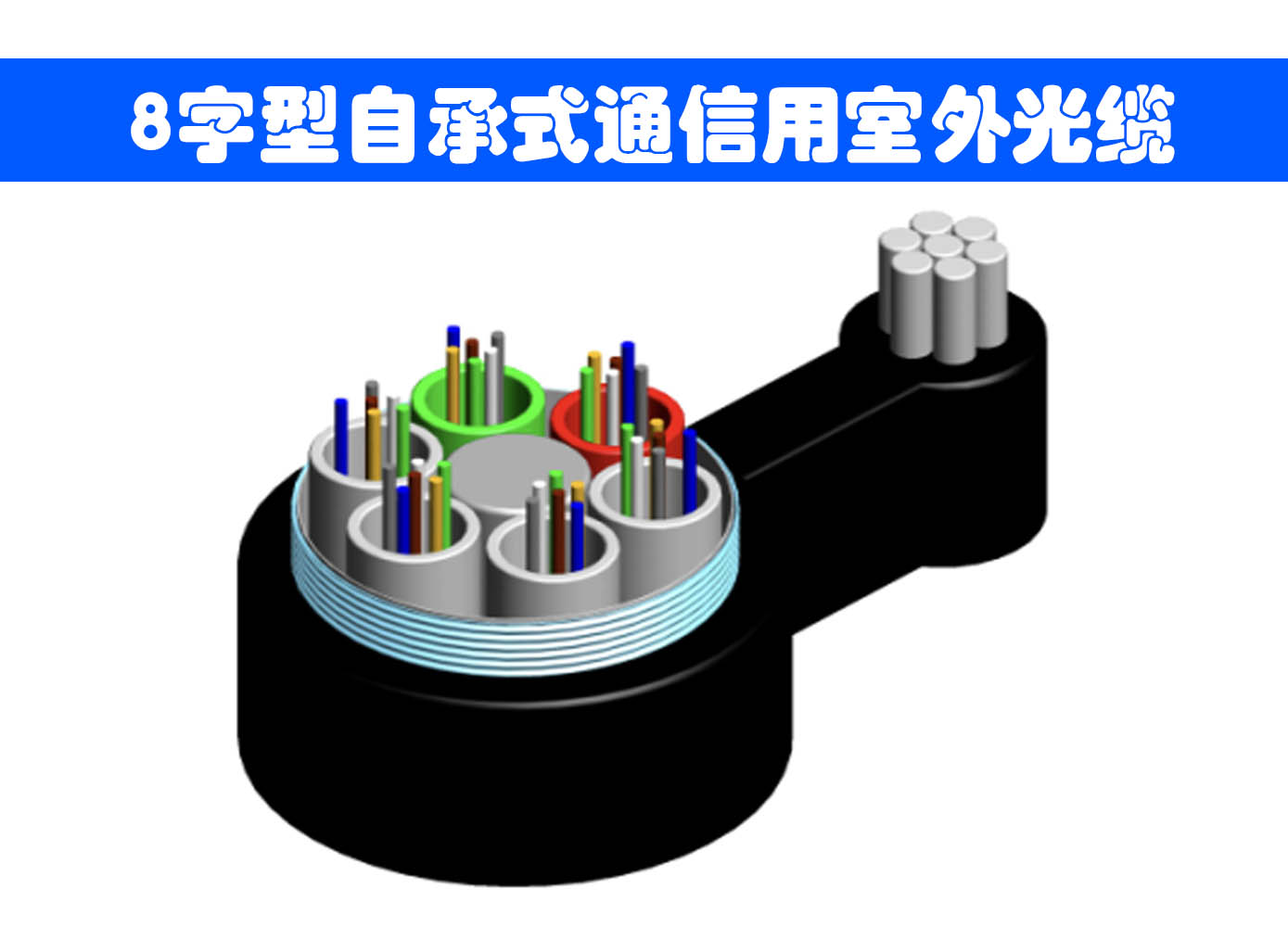

GYTC8A光纜的結構是將250μm光纖套入高模量材料制成的松套管中,松套管內填充防水化合物。纜芯的中心是一根金屬加強芯,松套管(和填充繩 )圍繞中心加強芯絞合成緊湊和圓形的纜芯。纜芯用一層涂塑鋁帶(APL)縱包后,和鋼絲絞線集成到一個8字型的聚乙烯護套內。
The fibers, 250μm , are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure.
8字纜 光纜
產品特點 Characteristics
鋼絲絞線具有極高的抗拉強度,便于自承式架空敷設降低安裝成本。
High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
光纜具有很好的機械性能和溫度特性
Good mechanical and temperature performance
松套管材料本身具有良好的耐水解性能和較高的強度
High strength loose tube that is hydrolysis resistant
管內充以特種油膏,對光纖進行了關鍵性保護
Special tube filling compound ensure a critical protection of fiber
采用下列措施來確保光纜的防水性能
The following measures are taken to ensure the cable watertight
單根鋼絲中心加強芯
Single steel wire as central strength member
松套管內填充特種防水化合物
Special tube filling compound ensure a critical protection of fiber
完全纜芯填充
Fully filled in the cable
涂塑鋁帶(APL)防潮層
APL layer
gytc8a參數表
| gytc8a參數表 | |||
| 光纜芯數 | 光纜結構 | 光纜松套管內
最大光纖芯數 |
光纜重量
(kg/km) |
| 2-30 | 1+5 | 6 | 135 |
| 32-60 | 1+5 | 12 | 147 |
| 74-96 | 1+6 | 12 | 172 |
| 62-72 | 1+8 | 12 | 198 |
| 98-120 | 1+10 | 12 | 220 |
| 122-144 | 1+12 | 12 | 246 |
| 146-216 | 1+6+12 | 12 | 271 |
| 218-300 | 1+9+15 | 12 | 311 |
| 允許拉力(N)短期 | ≥1500N | ||
| 允許拉力(N)長期 | ≥600N | ||
| 允許壓扁力-短期 | ≥1000(N/100mm) | ||
| 允許壓扁力-長期 | ≥300(N/100mm) | ||
1、典型值可根據實際情況做相應調整;
2、可根據客戶要求進行相應產品的設計;
產品標準 Standards
GYTC8A光纜符合YD/T 1155-2001和IEC 60794-1標準
GYTC8A cable complies with Standard YD/T 1155-2011 as well as IEC 60794-1.
光纜環境性能
| 試驗項目 | 試驗方法 |
| 溫度循環試驗 | a.溫度臺階:+20℃、-40℃、+70℃、+20℃;
b.保持時間:單護套光纜每一臺階12小時,雙護套光纜每一臺階24小時,循環次數:2個循環; |
| 滲水試驗 | 成品后光纜滲水性能應符合IEC60794-1-F5B規定,在光纜全截面上進行,滿足1m水柱,1m光纜,8小時不滲水。 |
| 光纜外護套
絕緣電阻 |
光纜外護套絕緣電阻(外護層內鎧裝層與大地間),在光纜浸水24小時后測試,不小于2000MΩ?km(直流500伏測試)。 |
| 介電強度 | 外護套內鎧裝層與大地間:在光纜浸水24小時后測試,不小于直流15千伏2分鐘。對雙護套光纜,要求外護套內鎧裝與金屬加強芯間:不小于直流20千伏5秒鐘,符合GB/T 1408.1-2006規定。 |
| 滴流試驗 | 在溫度為70℃(24h)的環境條件下,光纜應無填充復合物和涂覆復合物等滴出。 |
注:我們還可提供Y護套或S護套的8字型光纜GYTC8Y、GYTC8S等,此類產品多應用于自承式架空敷設。
